Rendering

SuperDex Gym environments use superdex.physics.viewer.Viewer, the SuperDex Physics viewer built on Polyscope, for interactive debugging, evaluation, and programmatic video generation. SuperDex Gym instantiates and drives the viewer; rendering lives in superdex-physics.

Before You Render

Check Platform and Headless Constraints

Requirements

Polyscope rendering needs polyscope>=2.5.0,<2.6, declared by superdex-physics. Availability is a feature probe, not a version parse: the viewer checks for polyscope.get_ui_scale. When the probe fails, superdex.physics.viewer.VIEWER_AVAILABLE is False, and the scripts fall back to headless operation. See Requirements and Failure Modes.

Linux, macOS, and Windows follow the same code path; the viewer has no platform gate. A usable GL/EGL context is required for Polyscope, including on headless hosts. Forked subprocesses can deadlock with multithreaded simulation and can segfault when Ray Tune initializes rendering. HybridVectorEnv forces the spawn start method, so each spawned worker can create a context, but rendering more than one environment per process is unsupported.

Choose a Render Mode

The render_mode environment configuration accepts:

• "human": Interactive visualization in a GUI window, recommended for debugging. reset() and step() call render() automatically.
• "rgb_array": Offscreen rendering for programmatic access and video generation. Call env.render() explicitly for each frame.
• None: No renderer. This is the default and the mode for training.

Interactive and Offscreen Rendering

These configurations use the Polyscope renderer. Choose one when creating an environment: "human" requires a GUI-capable GL context, "rgb_array" requires explicit env.render() calls, and None creates no renderer.

from superdex.lab.gym.envs.benchmarks.cartpole_env import CartPoleEnv

# Interactive visualization (opens a GUI window)
human_config = {
    "render_mode": "human",
    "render_size": (1280, 720),  # Optional: set window size
    "start_paused": False,       # Optional: start simulation paused
}

# Offscreen rendering (for video generation)
video_config = {
    "render_mode": "rgb_array",
    "render_size": (1920, 1080),  # Video resolution
}

# No rendering (training mode)
training_config = {
    "render_mode": None,  # Maximum performance
}

env = CartPoleEnv(human_config)
env.close()

Producing Videos

Use render_mode="rgb_array", call env.render() for every captured frame, and save the frames with AnimationWriter.

MP4 encoding requires the ImageIO FFmpeg plugin

AnimationWriter encodes MP4 files on a background thread through ImageIO. Without the FFmpeg plugin, encoding can fail without making write() or flush() raise, leaving a truncated file. Verify that import imageio_ffmpeg succeeds; otherwise, install imageio[ffmpeg]. See Installation and Setup.

Basic Video Recording

import pathlib

from superdex.physics.viewer.utils import AnimationWriter

# Setup environment for video recording
env_config = {
    "render_mode": "rgb_array",
    "render_size": (1920, 1080),  # HD video resolution
}

env = YourEnv(env_config)
writer = AnimationWriter(
    output_path=pathlib.Path("./videos/"),
    fps=30,  # Match your desired video framerate
    fmt="mp4",
)

# Record episode
obs, _ = env.reset()
for step in range(1000):
    action = env.action_space.sample()  # Substitute your policy here.
    obs, reward, terminated, truncated, info = env.step(action)

    # Capture an RGB frame.
    frame = env.render()
    writer.add(frame)

    if terminated or truncated:
        break

# Save video
writer.write("my_episode")  # Creates "my_episode.mp4"
writer.flush()  # Wait for file to be written
env.close()

Recording Multiple Episodes Sequentially

This example still records one rendered environment per process; it records the episodes sequentially.

def record_multiple_episodes(env_config, num_episodes=10):
    env = YourEnv(env_config)
    writer = AnimationWriter(
        output_path=pathlib.Path("./evaluation_videos/"),
        fps=30,
        fmt="mp4",
    )

    for episode in range(num_episodes):
        obs, _ = env.reset()
        episode_frames = []

        while True:
            action = env.action_space.sample()  # Substitute your policy here.
            obs, reward, terminated, truncated, info = env.step(action)

            frame = env.render()
            episode_frames.append(frame)

            if terminated or truncated:
                break

        # Add all frames for this episode
        writer.add(episode_frames)
        writer.write(f"episode_{episode:03d}")

    writer.flush()
    env.close()

Configuring the Coordinate System

Set MochiEnvCfg.render_coordinate_system when assets or data use a coordinate convention different from the default Polyscope convention.

Available Coordinate Systems

Preset Name	Handedness	Up Axis	Forward Axis	Used By / Convention	Axis Mapping
"polyscope" or None	Right-handed	Y	-Z	OpenGL, Polyscope (default)	Right = +X, Up = +Y, Forward = -Z
"blender"	Right-handed	Z	Y	Blender	Right = +X, Up = +Z, Forward = +Y
"unity"	Left-handed	Y	Z	Unity	Right = +X, Up = +Y, Forward = +Z
"unreal"	Left-handed	Z	X	Unreal Engine	Right = +Y, Up = +Z, Forward = +X
"mochi"	Right-handed	Y	-Z	SuperDex Physics engine	Right = +X, Up = +Y, Forward = -Z
"ros"	Right-handed	Z	X	ROS (Robot Operating System)	Right = -Y, Up = +Z, Forward = +X

Using Preset Coordinate Systems

Pass a preset name as a string:

from superdex.lab.gym.envs.benchmarks.cartpole_env import CartPoleEnv

# Use Unity coordinate system
env = CartPoleEnv({
    "render_mode": "human",
    "render_coordinate_system": "unity",
})

# Use Unreal coordinate system
env = CartPoleEnv({
    "render_mode": "human",
    "render_coordinate_system": "unreal",
})

Custom Coordinate Systems

Pass a CoordinateSystem for a custom convention:

from superdex.lab.gym.envs.benchmarks.cartpole_env import CartPoleEnv
from superdex.physics.utils.coordinate_systems import CoordinateSystem

# Define a custom coordinate system
custom_system = CoordinateSystem(right="+X", up="+Z", forward="-Y")

env = CartPoleEnv({
    "render_mode": "human",
    "render_coordinate_system": custom_system,
})

Default Behavior

If render_coordinate_system is not specified or is None, the renderer uses the legacy OpenGL coordinate system, which matches Polyscope's internal convention. No coordinate transformations are applied.

Configuring Default Render Items

SuperDex Gym renders scene actors with mesh geometry by default.

What Gets Rendered by Default

• All Actor Types: Rigid bodies, articulated actors, and soft actors are automatically included.
• Surface Meshes: Solid surfaces are the primary visual representation.

The Polyscope viewer draws an actor when any of these conditions holds:

1. It has a registered GLB visual model.
2. Its get_surface_mesh() is non-empty.
3. It is a static infinite-plane collider. A dedicated StaticPlaneRenderer draws these actors despite an empty surface mesh, which is how ground planes appear.

Default Rendering Settings

Solid mesh surfaces are shown. Wireframe edges, individual mesh vertices, and coordinate-frame axes are off unless enabled. Each toggle gets its initial state when the Polyscope structure is constructed; the Scene panel on the first frame is authoritative for a given build.

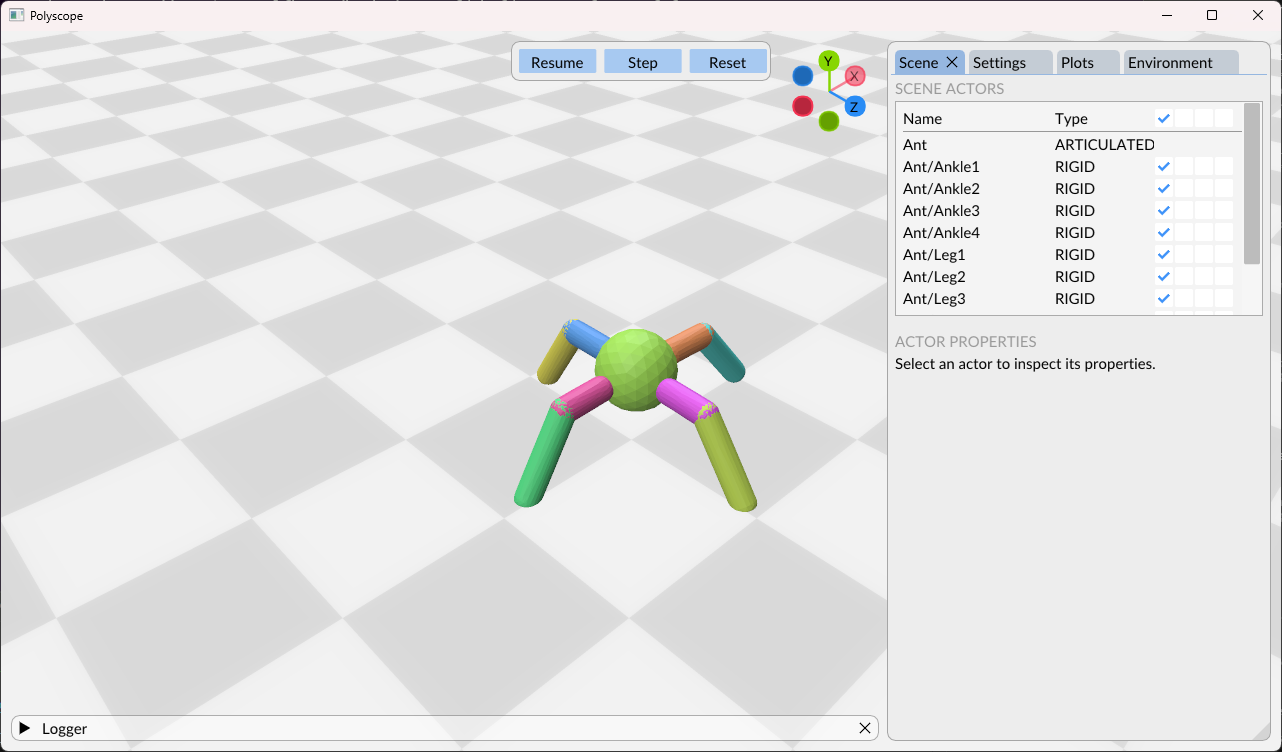

Interactive Configuration

This UI is available in render_mode="human":

• Scene Panel: Toggle surface, edges, nodes, and axes for each actor.
• Batch Controls: Apply visibility changes to all actors simultaneously.
• Actor Selection: Click actors to inspect and modify individual settings.

Configuring Through Code

Excluding Actors from Rendering

from superdex.lab.gym.envs import MochiEnv


class MyCustomEnv(MochiEnv):
    def _reset_renderer(self):
        # Exclude specific actors by name or pattern
        self._renderer.set_excluded_actors([
            "GroundPlane",      # Exclude by exact name
            "Debug_*",          # Exclude using wildcard patterns
            "Sensor*",          # Hide all sensor-related actors
        ])

Configuring Default Display Options

get_actor_renderers() returns ActorRenderer and StaticPlaneRenderer objects.

Ground planes ignore these toggles

StaticPlaneRenderer overrides set_enable_edges, set_enable_axes, set_enable_nodes, and set_show_axes_at_com as no-ops. It does not implement set_transparency; calling that method on a ground-plane renderer raises AttributeError.

set_show_axes_at_com does not stick

Whether axes are drawn at the origin or at the centre of mass is a global viewer setting. The viewer rewrites every actor renderer from it each frame, so a per-actor set_show_axes_at_com(...) call is overwritten before it is drawn. Toggle it in the viewer UI instead.

from superdex.lab.gym.envs import MochiEnv


class MyCustomEnv(MochiEnv):
    def _reset_renderer(self):
        # Get all actor renderers
        actor_renderers = self._renderer.get_actor_renderers()

        # Configure rendering for all actors
        for actor_renderer in actor_renderers:
            # Enable wireframe edges for debugging
            actor_renderer.set_enable_edges(True)

            # Show coordinate axes
            actor_renderer.set_enable_axes(True)

            # Enable vertex visualization for soft bodies
            if "Soft" in actor_renderer.get_name():
                actor_renderer.set_enable_nodes(True)

Per-Actor Configuration

Do not call set_transparency() on a StaticPlaneRenderer.

from superdex.physics.utils.scene_helpers import find_actor
from superdex.lab.gym.envs import MochiEnv


class MyCustomEnv(MochiEnv):
    def _update_renderer(self):
        if self._renderer is None:
            return

        # Configure specific actors individually
        robot_actor = find_actor(self._scene, "Robot")
        robot_renderer = self._renderer.get_actor_renderer(robot_actor)
        if robot_renderer:
            # Show robot coordinate frames
            robot_renderer.set_enable_axes(True)
            # Do not call set_show_axes_at_com here - see the note above; the
            # viewer rewrites it from the global setting every frame.

        # Make debugging objects semi-transparent
        debug_actor = find_actor(self._scene, "DebugObject")
        debug_renderer = self._renderer.get_actor_renderer(debug_actor)
        if debug_renderer:
            debug_renderer.set_transparency(0.5)

Adding Custom Render Items

Custom environments can add visualization elements to aid understanding and debugging by overriding renderer hooks.

When the Hooks Run

render() runs _reset_renderer() when the render scene is dirty, then runs _update_renderer().

• In "human" mode, reset() and step() call render() automatically. _update_renderer() runs once per step, and _reset_renderer() runs once per episode during the render() triggered by reset().
• In "rgb_array" mode, reset() marks the render scene dirty, but neither hook runs until you call env.render().
• With render_mode=None, no renderer exists and neither hook runs. Do not put simulation-relevant state in these hooks.

Available Renderer Methods

_reset_renderer()

Use this hook for visualization setup that changes only between episodes. It runs on the first render() after each reset(); in "human" mode, that render() occurs inside reset().

_update_renderer()

Use this hook for dynamic visualization that changes each frame. It runs during every render() call, immediately before the frame is produced.

Example: Adding Custom Visualizations

import numpy as np
from superdex.lab.gym.envs.mochi_env import MochiEnv

class MyCustomEnv(MochiEnv):
    def _reset_renderer(self):
        """Called on the first render() after each reset - static visualizations."""
        if self._renderer is None:
            return

        # Add a reference grid
        self._renderer.add_grid(
            name="Floor",
            size=10.0,
            center=np.array([0, 0, 0]),
            period=1.0,
            axes="xz",
        )

        # Set camera view
        self._renderer.set_camera_view(
            look_from=np.array([5, 3, 5]),
            look_at=np.array([0, 1, 0]),
        )

        # Enable follow camera for dynamic scenes
        self._renderer.set_enable_follow_camera(True)
        self._renderer.set_follow_camera_smoothness(0.8)

    def _update_renderer(self):
        """Called at the end of every render() - add dynamic visualizations."""
        if self._renderer is None:
            return

        # Example: Visualize force vectors, targets, etc.
        # This is where you'd add step-by-step visual debugging

        # Frame the scene to keep objects in view
        if self.get_step_count() == 0:
            self._renderer.frame_scene()

add_grid Arguments

Pass add_grid options by keyword. Its signature is:

add_grid(name, size=np.inf, center=None, period=1, axes="xz", style="checker",
         color_1=(0.9, 0.9, 0.9), color_2=(1, 1, 1), double_sided=False)

double_sided is the ninth positional parameter, after the two colours. axes is one of "xy", "xz", or "yz"; style is "grid" or "checker".

Advanced Renderer Features

from superdex.lab.gym.envs import MochiEnv


class MyCustomEnv(MochiEnv):
    def _reset_renderer(self):
        if self._renderer is None:
            return

        # Add multiple grids with different styles
        self._renderer.add_grid("XY_Plane", axes="xy", style="checker")
        self._renderer.add_grid("Ground", axes="xz", style="grid")

        # Camera controls
        self._renderer.set_enable_follow_camera(True)
        self._renderer.set_compute_automatic_distance(True)

        # Get renderer information
        actors = self._renderer.get_actors()
        scene_bounds = self._renderer.get_scene_bounds()

Performance Considerations

• Training: Use render_mode=None for maximum performance.
• Evaluation: Use "human" for interactive debugging and "rgb_array" for video generation.
• Memory: High-resolution rendering uses significant GPU/CPU resources.
• Batch Training: Rendering more than one environment per process is unsupported, not merely slow. Keep render_mode=None with HybridVectorEnv.

Requirements and Failure Modes

Polyscope rendering requires polyscope>=2.5.0,<2.6, declared by superdex-physics. superdex.physics.viewer.VIEWER_AVAILABLE reports a feature probe rather than a version parse: it is True when polyscope imports and exposes get_ui_scale. Constructing a viewer without it raises:

RuntimeError: Failed to initialize the renderer. Polyscope is not installed in the current environment, or it's an incompatible version. Please install Polyscope >= 2.5.0 to enable the renderer.

Callers handle an unavailable viewer differently:

• run_sample.py warns and falls back to render_mode=None, dropping any video request.
• run_inference.py does the same for a superdex_gym/* checkpoint, prints Renderer not available, setting render mode to None..., and records nothing.
• For RLlib, train_samples.py warns and skips attaching CheckpointVideoGeneratorCallback. Checkpoint video generation is disabled, not made headless. The callback never checks the flag; when it runs, it forces render_mode="rgb_array" unconditionally.

For platform behavior, GL/EGL context requirements, and forked versus spawned workers, see Check Platform and Headless Constraints.
